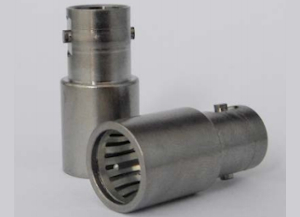

BNCFFM-PUSHON Brass Hardline Adapter

Coaxial,

Adapter, BNC female - IEC female Push On

Product Group
  • Coaxial,
Region
  • Europe,
Network Solution
  • Outside Plant / Distribution Network,
Ratings/Certifications
  • N/A
Solution Set
  • N/A
Application
  • Outdoor,
Product Type
  • Adapters,
Product Sub-Type
  • Hardline,
  • Brass,

Downloads

PPC's series of Brass Hardline Connectors and Adapters offer the following product line features:

• Return Loss better than 30 dB to 1GHz

• Shielding effectiveness better than -110 dB

• Patented Anti-Rotational feature which prevents loop swing/ the cable twisting as the back nut is tightened

• One wrench size for each connector (except SPR)

• Inner and outer conductor length markings on the connector body for preparation length

• One preparation length for inner and outer conductor

• Extreme temperature range from -40 degrees to +85 degrees Celsius

• Class A++ Shielding (EN 50117)

• 4 - 16my Nickel/Tin plating (NiTin)
