TurnOpt™ Series 1100 Fiber Distribution Hub

Fiber,

Powder coated aluminum construction, 27.5" x 13.5" x 11.5" (700mm x 344mm x 292mm), designed for small-to-mid-size MDU/MTU, patented rotating frame assembly technology, 72 or 96 subscribers, 12 or 24 input / express ports, 7-splitter module capacity, parking for 64 splitter outputs, NEMA 4 rated enclosure

Product Group
  • Fiber,
Region
  • Asia / Pacific,
  • Europe,
  • Latin America,
  • Middle East / Africa,
  • North America,
Network Solution
  • Outside Plant / Distribution Network,
Ratings/Certifications
  • N/A
Solution Set
  • FTTx,
  • Multi-Dwelling Unit (MDU),
Application
  • Outdoor,
Product Type
  • Cabinets & Hubs,
Product Sub-Type
  • N/A

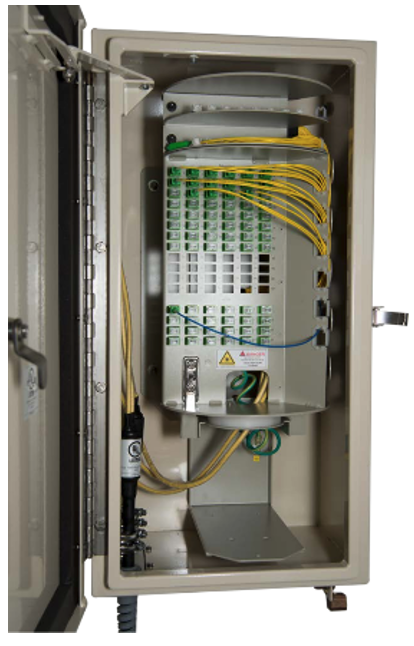

The TurnOpt™ 1100 is a compact Fiber Distribution Hub designed for low-density FTTX deployments supporting up to 96 subscribers. The TurnOpt 1100 is housed in a small form-factor enclosure that is ideally suited for pole-mount installations and wall-mount applications where space is limited. PPC’s patented Rotating Frame Assembly is housed inside the TurnOpt 1100 and provides 180° access to subscriber ports, express ports, splitter modules, splitter leads and cable management. PPC’s high performance PLC splitter modules are enclosed in a chemically resistant housing and are compliant with Telcordia GR-326, GR-1209 and GR-1221 standards. They easily snap into and finger release from splitter slots in PPC Fiber Distribution Hubs (no tools required).
