FutureLink® SFU Drop Terminal System

Fiber,

Terminal enclosure, indoor/outdoor, weather resistant, compact footprint, optional SC/APC adapter, u-channel, multiple options/configurations.

Product Group
  • Fiber,
Region
  • Asia / Pacific,
  • Europe,
  • Latin America,
  • Middle East / Africa,
  • North America,
Network Solution
  • Premises,
Ratings/Certifications
  • N/A
Solution Set
  • FTTx,
  • Single Dwelling Unit (SDU),
Application
  • Indoor,
  • Outdoor,
Product Type
  • Enclosures,
Product Sub-Type
  • N/A

Downloads

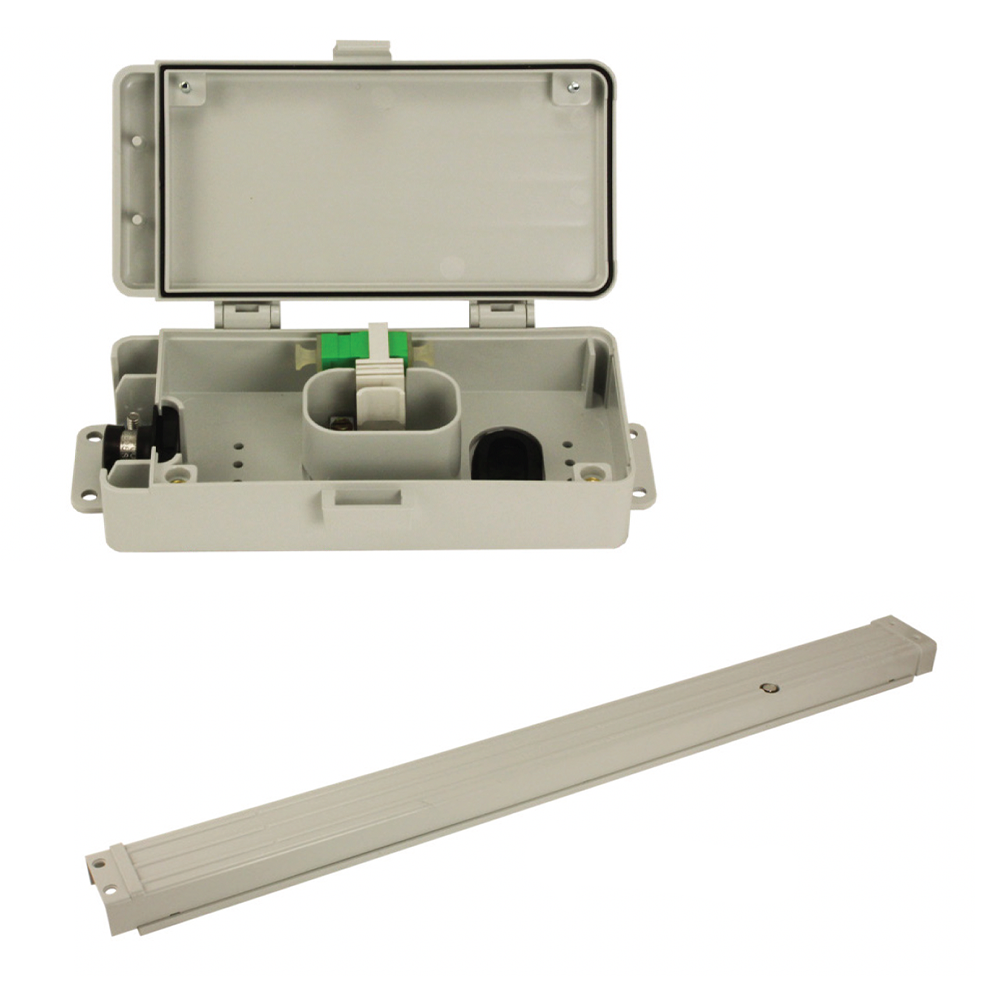

The PPC Drop Terminal System is a compact enclosure designed to protect the transition from the outside plant cable to indoor-rated drop in SFU applications. The terminal’s design offers a sleek and unobtrusive profile on the exterior of singlefamily homes. The U-channel protects the incoming cable from the environment as well as dresses up the appearance. The Drop Terminal includes a single SC/APC adapter for quick connection of the outdoor and indoor fibers. The inbound cable is easily installed, with a lay-in grommet and clamp at the entrance and a strength member tie-point inside. A grommet on the rear of the terminal protects the indoor drop fiber as it enters the dwelling. The U-channel base fastens to the side of the dwelling, the cover snaps in place and is secured with a captive screw (216 tool compatible). The U-channel and Drop Terminal couple together to provide complete protection for the incoming cable. Additional sections of U-Channel can be used for longer feed cable runs.
