Skeleton Chassis

Fiber,

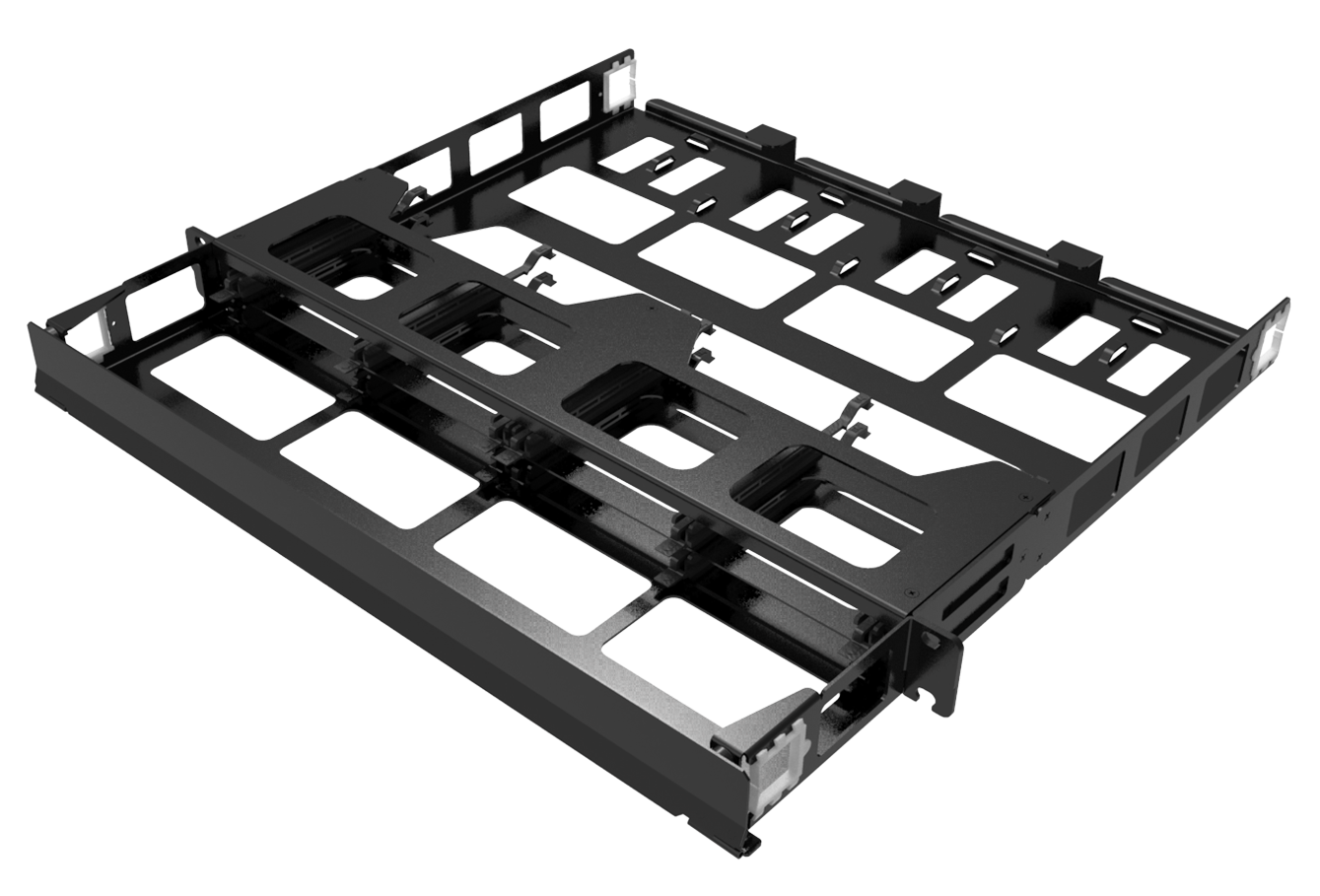

Skeleton chassis (SKC), modular distribution panel, max capacity 96F in 1U size

Product Group
  • Fiber,
Region
  • Asia / Pacific,
  • Latin America,
  • Middle East / Africa,
Network Solution
  • Headend / Central Office,
Ratings/Certifications
  • N/A
Solution Set
  • N/A
Application
  • Indoor,
Product Type
  • Fiber Management,
Product Sub-Type
  • Panels,

Downloads

The Skeleton (SKC) Chassis is a modular, standards-based, pre-terminated distribution platform designed to increase port density, improve connector access, and efficiently utilize valuable rack space in central offices. The SKC Chassis, in its basic configuration, will serve 48 LC ports per 1U (96 fibers) or 120 LC ports per 2U (240 fibers) for all network topologies including 10G, 40G and 100G deployments utilizing high performance 8-fiber, 12-fiber and 24-fiber MPO technology. The SKC Chassis solution facilitates front or rear installable modules (per 1U) that allows multiple fiber connections to be quickly and efficiently installed and maintained, while supporting regular moves, adds and changes. An optional front cable manager and door assembly can be added to the front of the chassis, and a cable manager can also be added at the rear for incoming trunk cable.
