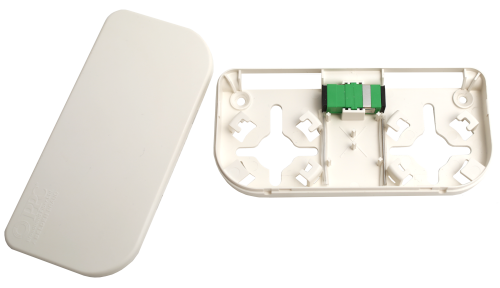

QuikPass™ Fiber Entry Box 10-1429-xx

Fiber,

Fiber entry box, push, splice, pigtail, and QuikPush® options, 140mm x 67mm x 16mm, UL94: V0 / LSZH flame retardancy, white finish (RAL 9010)

Product Group
  • Fiber,
Region
  • Asia / Pacific,
  • Europe,
  • Latin America,
  • Middle East / Africa,
  • North America,
Network Solution
  • Premises,
Ratings/Certifications
  • N/A
Solution Set
  • QuikPass™,
  • Multi-Dwelling Unit (MDU),
Application
  • Indoor,
Product Type
  • Enclosures,
Product Sub-Type
  • Kit Solution,
  • Terminal,

Downloads

The PPC QuikPass™ Fiber Entry Box is a slim profile, compact termination box at the heart of the PPC QuikPass™ solution. Manufactured from a flame retardant, low smoke zero halogen and impact resistant polymer, the box mounts to wall surfaces via two (2) screws (provided). The Fiber Entry Box is positioned over Miniflex® distribution cable and provides retaining features to hold the cable securely. After window cutting the cable, individual 900µm fibers are pulled back and coiled into the box. The Fiber Entry Box features all the necessary components to connect the subscriber to the distribution cable and offers a range of termination options including fusion splice, field fit connectors, terminated drop cables and even the option to push the fiber from the Fiber Entry Box to the customer terminal / ONT.
