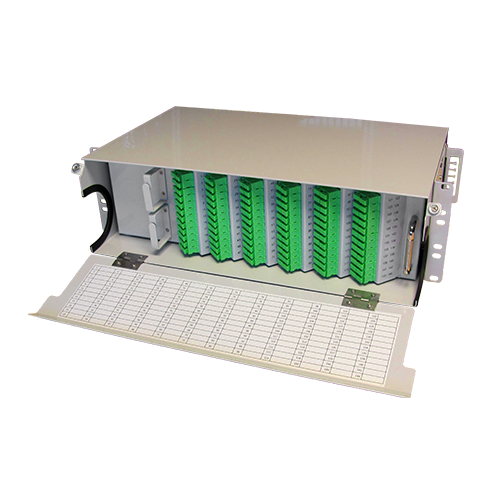

Patch Panel, 3U Swing Out


133 mm x 465.5 mm x 270 mm (5.2 in x 18.3 in x 10.6 mm), 3U 19" standard panel (IEC 60297-3), magnet secured swing-out tray for improved cable management, angled adapters, magnet secured front door, removable top cover (tool-less design), left side hinged (right side optional), both side cable entries (rear cable entry optional),high density (up to 144F), factory-loaded SC adapters and fiber management accessories, industry standard SC connectors (IEC 61754-4), available pre-loaded w/ splice cassettes and pigtails or w/ pre-terminated cable

Product Group
  • Fiber,
  • Asia / Pacific,
  • Latin America,
  • Middle East / Africa,
Network Solution
  • Outside Plant / Distribution Network,
  • Headend / Central Office,
  • N/A
Solution Set
  • N/A
  • Indoor,
Product Type
  • Fiber Management,
Product Sub-Type
  • Panels,


The PPC 3U Swing-Out Patch Panel (SWP3) provides easy and reliable fiber optic connection for all types of Telecom and Datacom applications. It offers high density of 144 fiber connections in 3U rack space, based on industry standard SC connectors. The SWP3 is available as splice and patch panel (pre-loaded with splice trays and pigtails) or as a plug-and-play solution (readily pre-loaded with 144 fiber cable with pre-determined length).
