Basic Tier Traps

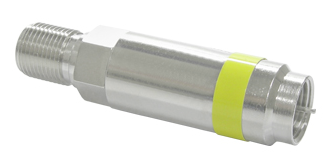

SNBR Wide Band Reject Tiering FiltersSNBR_data_only.png

PPC's Wide Band Reject Filters are designed to facilitate provision of high-speed, data-only service to cable system subscribers. The SNBR Wide Band Reject Filter removes the analog tier while passing downstream and upstream DOCSIS frequencies.


  • 100% Surface Mount Technology for consistent performance
  • Compact, single-piece construction
  • Improved insertion loss over downstream pass band minimizing modem dropout
  • Precision four-point female seizure contact
  • Moisture-sealed connector interfaces
  • SCTE compliant connector interfaces
  • 7/16 hex allows for standard tool installation
  • Available with intergraded port seal (AquaTight®)
DOWNLOAD DATASHEET
GET OUR NEWSLETTER

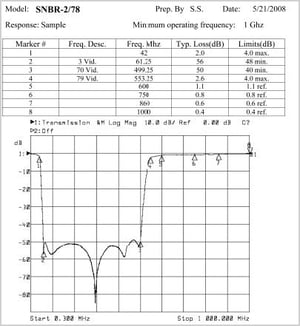

Specification

Frequency 1,002 MHz minimum
Impedance 75 Ohms (nominal)
Shielding Effectiveness > 120 dB
Dimensions  Length =1.94 in (4.93 cm)  Diameter =0.50 in (1.27 cm)
Surge 6 kV per SCTE IPS-TP-210
