PON for Dummies: Understanding Passive Optical Networks

If you’re a telecom industry professional and feel overwhelmed by all the PON terminology, you're not alone. While passive optical network technology has been around for years, evolving standards, cost efficiencies and AI-driven demand for bandwidth are pushing it further into the mainstream.

PON technology might seem complex at first glance, but once you understand the fundamentals, it becomes clear why PON has become the backbone of modern fiber deployments across residential, commercial and enterprise markets.

This blog will unearth what PON is, how it works, why it’s different from other network architectures, and what you need to know about its evolving standards.

What Makes PON Different than Other Network Architectures?

A passive optical network (PON) is a point-to-multipoint fiber network architecture that uses optical splitters to deliver high-bandwidth services from a single fiber to multiple end users without requiring active electronics in the field. By eliminating powered components between the service provider’s central office and the customer premises, PON reduces costs, increases reliability, and simplifies broadband deployment.

Think of traditional Ethernet fiber networks like having individual highways leading to each house – expensive and requiring significant investment in costly infrastructure. PON takes a different approach by sharing the fiber highway among multiple destinations through strategic splitting points closer to customers.

In a traditional Ethernet fiber network, every single device needs its own dedicated fiber run back to the central office. This creates what's called a “home run” scenario, where you're essentially building individual roads to every destination. PON fundamentally changes this equation by allowing you to share that same fiber infrastructure among up to 128 devices through passive optical splitters deployed in the field.

The economics are compelling: Where a traditional network might require 21 separate 1U switches to serve the same number of customers, a single 1U Optical Line Terminal (OLT) can handle 1,000 to 2,000 customers. This translates directly into significant savings in power consumption, cooling requirements, space utilization, and backup power infrastructure at your headend facilities.

What Are the Building Blocks of PON Architecture?

Understanding PON architecture requires familiarity with several key components that work together seamlessly. At the central office or point of presence, you'll find the Optical Line Terminal (OLT), which serves as the intelligent hub managing all downstream communication. Belden’s broadband connected brands PPC and Precision OT offers combo PON OLT solutions that support up to 2,048 ONTs with splitting ratios of 1:128, providing the centralized intelligence that makes the entire system work.

The OLT houses specialized optics that convert electrical signals to optical signals, with different optics available for various distance requirements and link budgets. If your deployment needs to reach farther distances, higher-powered optics provide the additional reach and buffer room necessary for reliable service delivery.

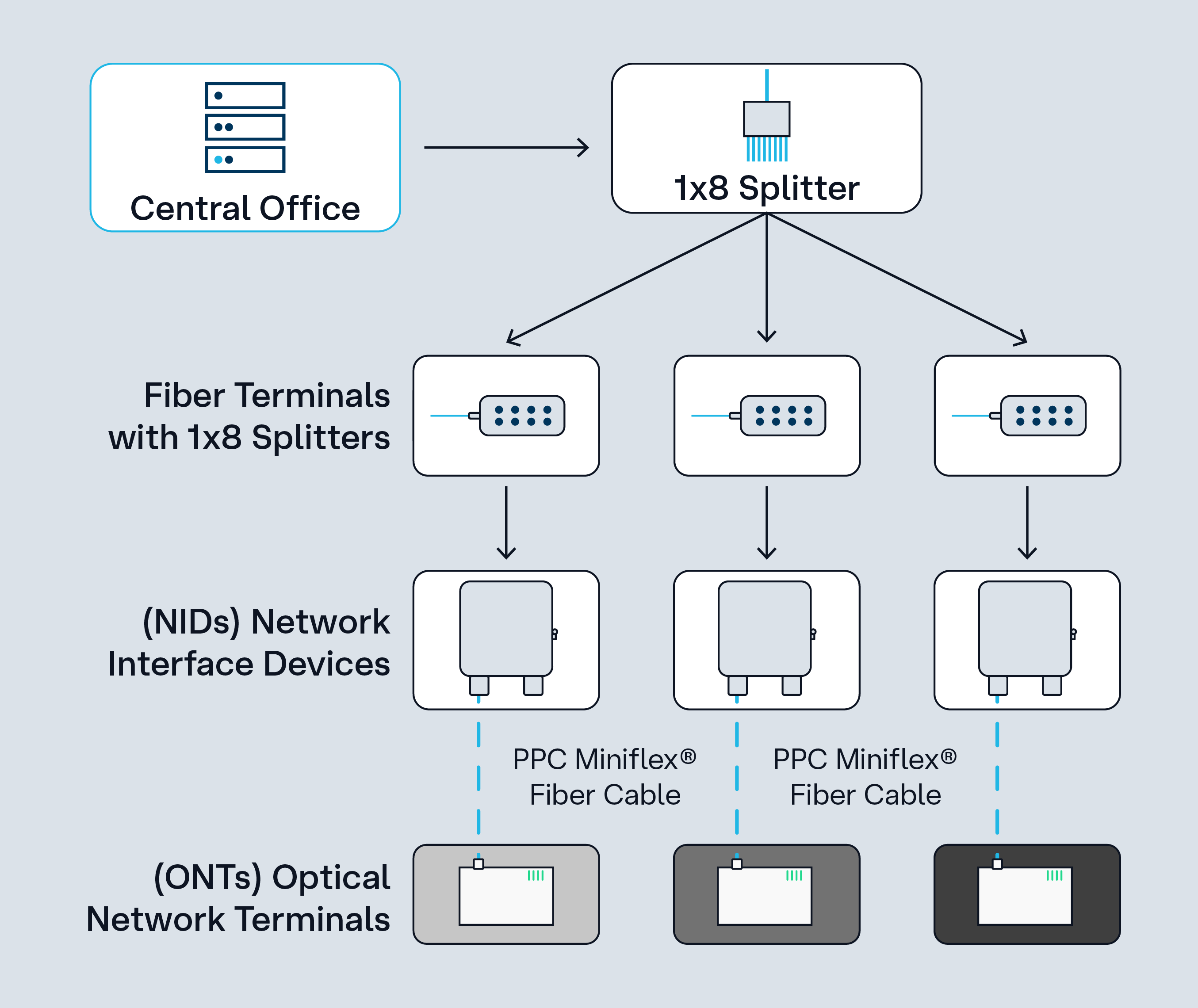

From the OLT, single fibers extend into the field where passive splitting occurs. The most common approach in fiber-to-the-home (FTTH) deployments leverages distributed splitting – typically starting with a primary 1x8 splitter, then branching to additional 1x8 splitters at the neighborhood or street level. This creates a tree-like structure that distributes the optical signal to multiple endpoints.

In the field, master service terminals (MSTs) provide connection points for drop cables running from utility poles to the customer premises. Our PPC fiber enclosures can be configured for various FTTx applications, providing the protection and organization needed for these critical junction points.

At the customer premises, fiber typically terminates at a network interface device (NID), which serves as a demarcation point. From there, indoor-rated fiber like PPC Miniflex® cable connects to the customer’s optical network terminal (ONT), which converts the optical signal back to electrical signals for standard networking equipment.

PON Generations: What Are Your Options?

The PON landscape includes several generations of technology, each offering different capabilities and price points. GPON (Gigabit PON), while still found in some rural deployments, provides asymmetric bandwidth – 2.5 Gbps downstream and 1.25 Gbps upstream – shared across all connected devices on a single port.

The current industry standard is XGS-PON (10 Gigabit Symmetric PON), which delivers 10 Gbps in both directions, shared across connected devices. This technology represents approximately 95% of new PON deployments in the U.S., offering the right balance of performance, cost, and future-proofing for most applications.

Emerging technologies like 25G-PON and 50G-PON provide even higher bandwidth capabilities, though deployment remains limited due to cost considerations and the reality that current bandwidth offerings already exceed most customer usage patterns.  The Precision OT OpenPath solution focuses on XGS-PON, while planning for future 50G-PON capabilities as market demand develops.

Why Does “Passive” Matter?

The “passive” designation in PON carries operational implications. Between the OLT at the headend and the ONTs at the customer premises, all intermediate infrastructure operates without electrical power. Every splitter, every length of fiber, and every connection point in the field operates purely through optical physics – no electronics, no power requirements, no active maintenance.

This passive nature delivers multiple advantages. Power consumption concentrates only at the endpoints, the central office and the customer premises, which reduces operational expenses and simplifies backup power requirements during outages. Field infrastructure becomes inherently more reliable since there are no active components to fail, overheat, or require regular maintenance.

The reliability advantage becomes particularly apparent during storm scenarios. Traditional copper networks suffer from the vulnerability of field-deployed amplifiers and active equipment that require power to function. When storms knock out commercial power, these systems fail. PON networks, with their passive field infrastructure and battery-backed central facilities, maintain service delivery as long as the fiber plant remains intact.

What Are the PON Applications Across Market Segments?

PON technology serves diverse market segments with varying requirements. Residential deployments represent the most visible application, delivering high-speed internet, video services, and voice communications to homes through a shared infrastructure model.

Business applications increasingly embrace PON, particularly in small-to-medium enterprises where dedicated bandwidth isn’t essential. The shared bandwidth model works well for businesses with typical usage patterns, though larger enterprises requiring guaranteed bandwidth often prefer dedicated fiber solutions.

Multi-dwelling unit (MDU) deployments present unique opportunities for PON implementation. Some MDU deployments place OLTs directly within buildings, while others feed buildings with multiple fibers and deploy splitters within the structure. The flexibility of PON architecture accommodates various MDU approaches depending on building size, tenant requirements, and existing infrastructure.

What Are Deployment Considerations for Future-Proofing?

Successfully deploying PON networks requires addressing several common challenges. System complexity often intimidates organizations new to PON technology, as many available platforms require specialized expertise and significant training investments. This complexity can translate into higher operational costs and vendor lock-in scenarios that limit future flexibility.

The solution lies in choosing platforms designed for simplicity and openness.  OpenPath was developed specifically to address these concerns, providing straightforward deployment and management tools that don't require extensive specialized training. The platform’s open architecture allows integration with existing equipment, avoiding costly forklift upgrades and vendor lock-in situations.

For brownfield deployments where existing GPON infrastructure is already in place, combination PON capabilities allow simultaneous operation of GPON and XGS-PON services over the same fiber infrastructure. This enables gradual migration strategies that protect existing investments while providing upgrade paths for customers requiring higher bandwidth.

PON technology offers excellent future-proofing through its infrastructure reusability and backward compatibility features. Once fiber infrastructure is deployed, bandwidth upgrades often require only endpoint equipment replacement. The same glass that carries GPON can support XGS-PON and beyond.

Backward compatibility features allow mixed deployments where legacy and new technology coexist on the same fiber plant. This enables gradual migration strategies that align technology upgrades with customer demand and budget cycles, rather than forcing wholesale infrastructure replacement.

Our comprehensive fiber infrastructure solutions provide the foundational elements needed for long-term PON deployments that can evolve with changing technology requirements.

How Can You Make PON Work for You?

Understanding PON fundamentals enables informed decision-making about network architecture, vendor selection, and deployment strategies. The technology’s combination of cost efficiency, scalability, and reliability makes it attractive across various applications, from residential services to enterprise networks.

Platforms that emphasize ease of use, open integration capabilities, and straightforward management tools typically deliver better long-term value than complex systems requiring extensive specialized expertise.

As bandwidth demands continue growing and fiber deployment costs remain a critical factor, PON technology provides a proven path forward that efficiently serves diverse market segments while maintaining the flexibility needed for future technology evolution.
