What are Hybrid Fiber Coax (HFC) Networks?



In today's hyper-connected world, high-speed broadband services have transitioned from a luxury to a necessity. The demand for fast and reliable internet is widespread, touching every aspect of our personal and professional lives. However, a key challenge to connecting the world’s population lies ever-present in the need to optimize broadband infrastructure.

Building out a fully fiber optic network is not just a complex endeavor; it's expensive and time-consuming. Balancing the growing demand for high-speed internet with the practicality of network expansion leads to evolving network designs, including popular Hybrid Fiber Coax (HFC) networks. These networks represent a practical approach, integrating existing coaxial infrastructure with fiber optic technology to provide efficient, cost-effective, and scalable high-speed solutions to users around the world.

How HFC Networks are Structured

HFC networks are game-changers in modern applications, seamlessly merging fiber optics and coaxial technology for efficient connectivity. HFC systems begin with fiber, which extends from the service provider’s headend/central office to neighborhood nodes. In these applications, fiber cables offer high bandwidth, low latency, and long-distance transmission capabilities to ensure data transports efficiently across a network.

From the optical node, the established coaxial technology distributes services like cable TV and broadband access to businesses, multi-dwelling and single-family units (MDUs and SFUs), offering reliable short-distance transmission. When merged, this hybrid approach optimizes existing infrastructure while incorporating new fiber technology, making high-speed connectivity affordable and accessible to a broader user base.

Discover Tailored Solutions for HFC Networks

Navigating Data Flow in HFC Applications

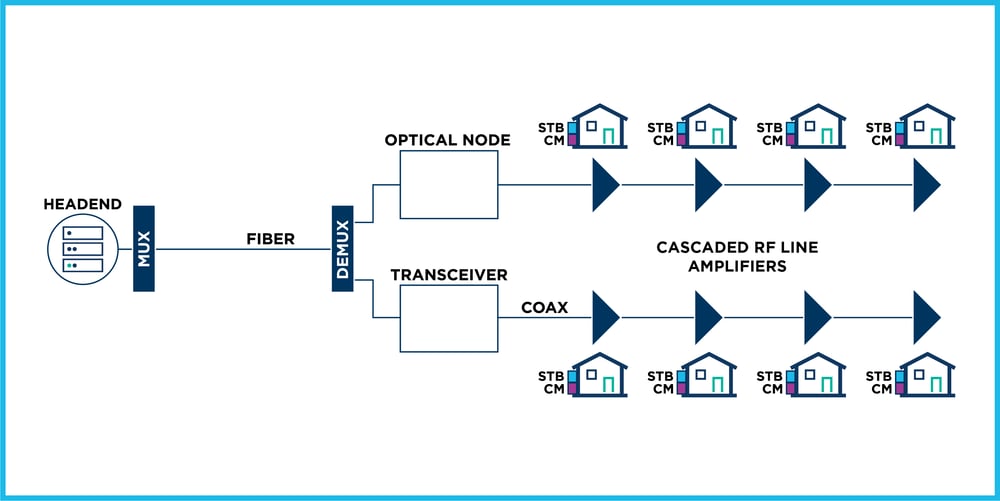

HFC connectivity operates by transmitting data in two directions between the central office and premises locations. In a FAQ posted by CableLabs, once a DOCSIS broadband signal is created at the central office, data then travels downstream to an optical node where fiber cable signals are converted into electrical signals by an optical transceiver. Transitioning from fiber to electrical signals brings the possibility of signal attenuation, which is a loss in signal strength from fiber to coax. However, the node actively regenerates the signals in both directions, minimizing the potential for significant loss in data flow.

The electrical signal is then divided into multiple signals by a splitter and distributed over coax to a subscriber’s cable modem, and finally dispersed to various devices in the customer premises, allowing online connectivity.

In the opposite direction, upstream data, including user requests and feedback, travels from a subscriber to central office servers by converting an electrical signal back to a fiber signal via a transceiver. This completes the back-and-forth data flow in HFC networks.

learn How to improve in-home performance for docsis

Advantages of Hybrid Connectivity

Hybrid networks offer a range of advantages that make them a popular choice for modern communication systems. The benefits include:

High-speed Internet: These versatile applications offer significant bandwidth capacity, allowing for fast and reliable connectivity.

Scalability: HFC networks can be upgraded to accommodate increasing bandwidth and newer technologies without major infrastructure changes.

Controlled Costs: Compared to full fiber networks, HFC provides a cost-effective solution by utilizing existing coax infrastructure.

Broad Service Availability: Hybrid networks support the delivery of multiple services such as TV, video streaming, and voice over IP (VoIP).

Network Reliability: By utilizing existing and reliable coax cable infrastructure and selectively deploying fiber optics, service providers can optimize network investments and provide high-speed connectivity to a broader customer base.

HFC networks bridge the gap between demand for high-speed internet and practical infrastructure challenges. By integrating fiber optics with existing coaxial technology, these networks provide fast, scalable, and cost-effective connectivity. HFC applications efficiently transmit data in both directions, offering high speeds and diverse service options. Their innovative approach ensures reliable internet access for a wide user base, making them invaluable to providers operating in our hyper-connected era.
